Several people have contributed pictures of their LART-related projects - professional, homebrew or otherwise. Please contact these brave men/women directly if you want to know more. Do you have something you would like to show here? Let us know.

Available collections:

Factory automation terminal
Balloon 2

Factory automation terminal

Michael Nixon sent these pictures of a prototype screen and case assembly for a factory automation terminal. It will hang under a cabinet and has a 14.1 inch LCD screen with Ethernet and touch screen functionality.

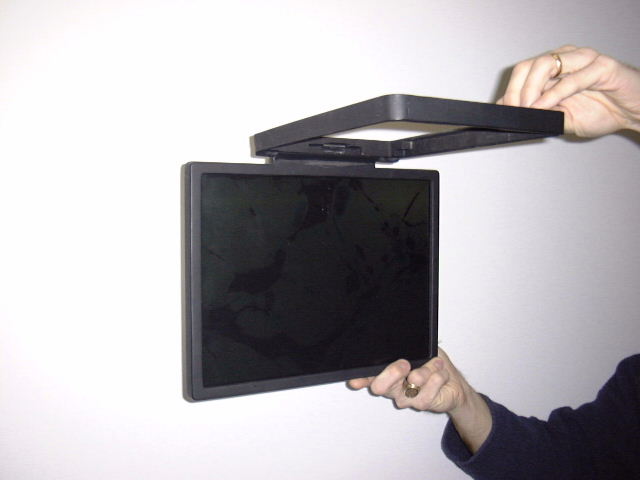

now you see it

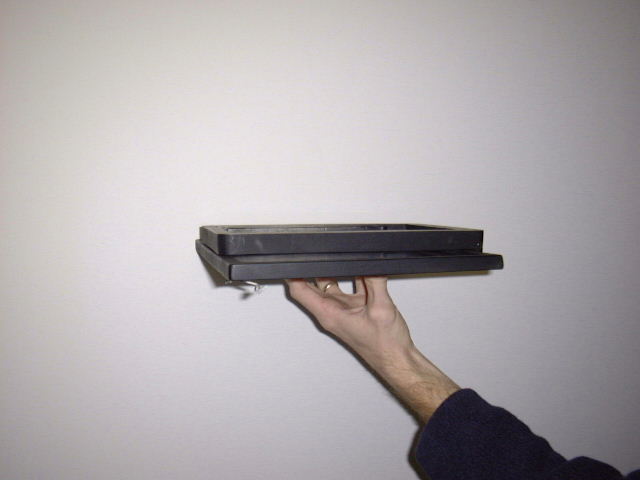

now you don't

Balloon 2

Steve Wiseman writes: This is the first public sighting of Balloon2 - we've not yet tested every last section, but it's running Linux just fine, and the Nand Flash / SmartMedia is working fine.

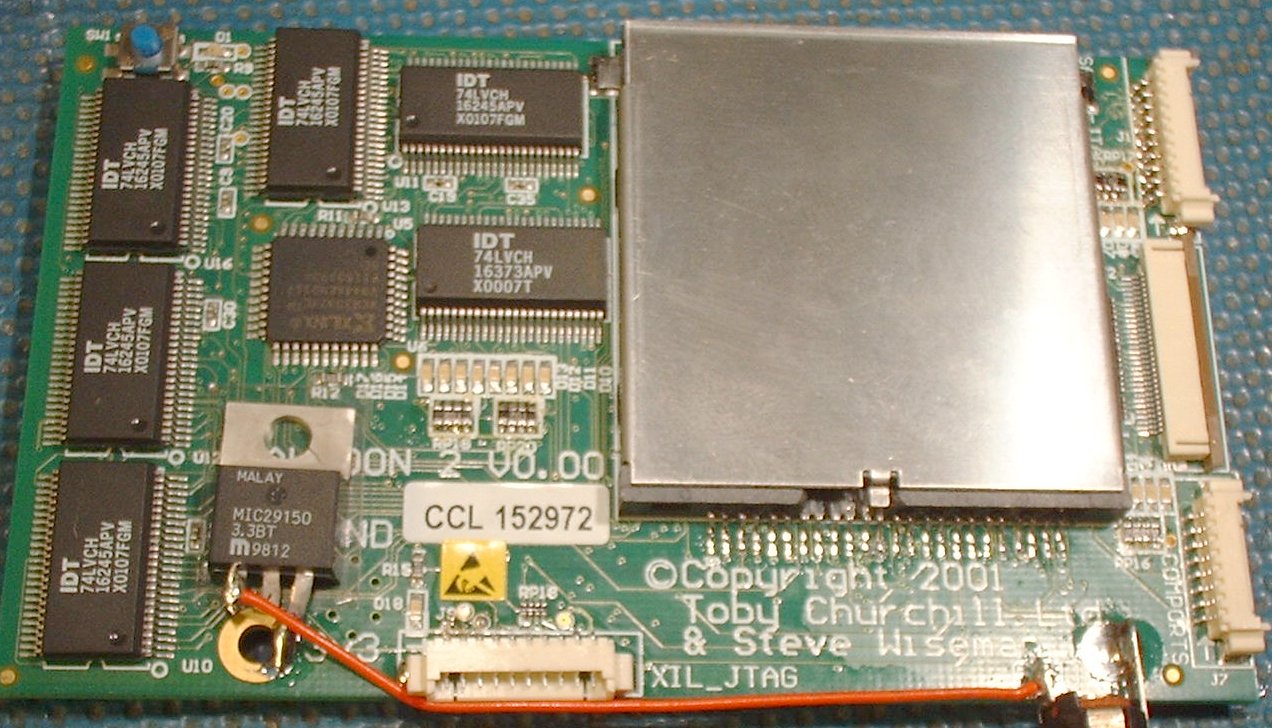

top

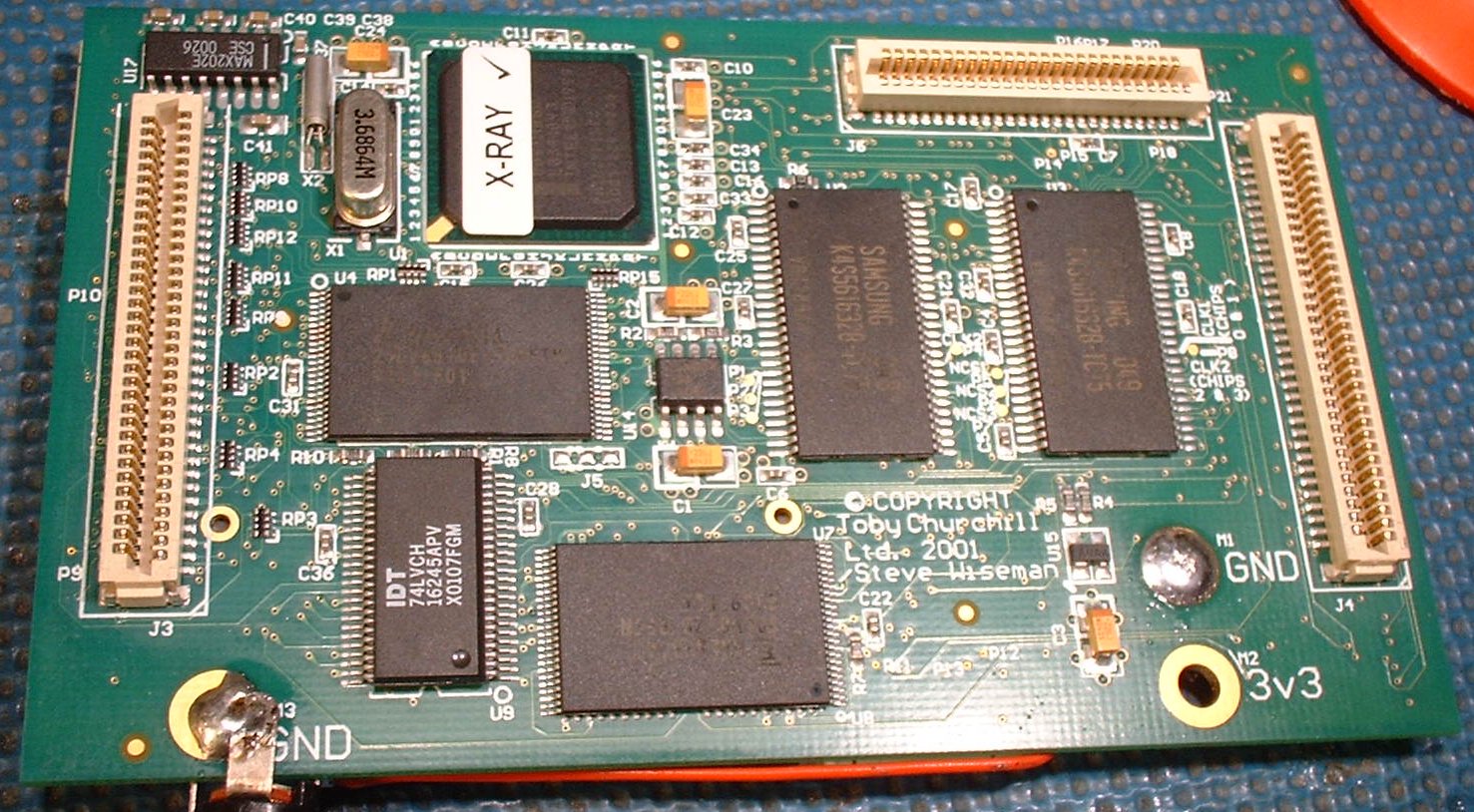

bottom

Balloon2_release_PDFs.zip 1 Feb 2002 23:38:06 7,068,311 bytes

This big archive (zip) contains all design files; if you just want to browse it and download single files, look here. Note that Balloon_2_CPU_sch.pdf is the entry point from which all links should work. Full index:

 Length    Date    Time    Name
 ------    ----    ----    ----
      0  02-01-02  19:37   PDFs/Balloon2_PLD/
   3348  12-14-01  21:01   PDFs/Balloon2_PLD/balloon2.isp
    824  01-22-02  11:28   PDFs/Balloon2_PLD/balloon2.ucf
   5089  01-13-02  13:12   PDFs/Balloon2_PLD/balloon2.vhd
   3889  02-01-02  19:37   PDFs/Balloon2_PLD/balloon2.vhd.pdf
    452  01-22-02  11:28   PDFs/Balloon2_PLD/balloon2.xst
    295  01-22-02  11:34   PDFs/Balloon2_PLD/balloon2_cpu.npl
     51  12-14-01  16:30   PDFs/Balloon2_PLD/XST.ini
 857092  02-01-02  19:35   PDFs/Balloon_2_CPU_sch.pdf
  60303  11-20-01  17:08   PDFs/Bottom Assembly Drawing.pdf
      0  02-01-02  19:16   PDFs/Datasheets/
1865336  07-06-01  11:15   PDFs/Datasheets/256MSDRAM_C.pdf
 299709  02-01-02  19:15   PDFs/Datasheets/541323092_sd.pdf
 140517  11-20-01  13:18   PDFs/Datasheets/74LVCH16245A_DS_38624.pdf
 110656  02-01-02  18:44   PDFs/Datasheets/74LVCH16373A_DS_69762.pdf
  82677  02-01-02  19:06   PDFs/Datasheets/I035-87433.pdf
 594319  06-12-00  06:09   PDFs/Datasheets/max202_etc.pdf
 137448  05-21-00  14:56   PDFs/Datasheets/max603_604.pdf
 121096  05-21-00  13:40   PDFs/Datasheets/max811_821.pdf
 640448  06-24-01  15:52   PDFs/Datasheets/MBM29LV651UE.pdf
 397389  11-26-01  15:42   PDFs/Datasheets/MBM30LV0128.pdf
5507893  07-17-00  09:27   PDFs/Datasheets/sa1110_jun_2000.pdf
1092961  06-23-01  21:23   PDFs/Datasheets/sa1110_spec_update_Apr_20001.pdf
  81165  11-14-01  13:46   PDFs/Datasheets/XCR3032XL.pdf
      0  02-01-02  19:42   PDFs/PCB/
      0  02-01-02  19:43   PDFs/PCB/layers/
   7131  11-20-01  19:34   PDFs/processor_BOM.pdf
  84969  11-20-01  17:08   PDFs/Top Assembly Drawing.pdf
      0  02-01-02  19:41   PDFs/
 ------                    -------
12095057                    29 files

Jflash_balloon2_release.zip	1 Feb 2002 23:37:54	41,091 bytes
A version of JFlash adapted to work with the balloon 2 board. (zip)
